BLIND CUT SYSTEM NEUMA SUPERSET

• Place of Origin:

   China

• Type:

  Building Accessories

• Genre:

  Prefabricated Stone, Monument and Artifact

• sCode:

  STPR1289790

• Place of Origin:

  Spain

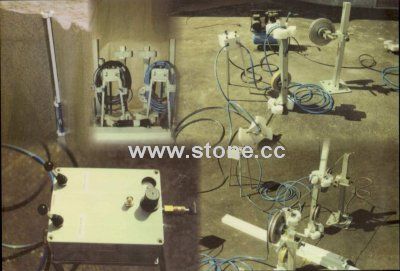

• The Blind cut system Neuma superset is a blind cut device designed specifically to quarry without using explosive substances using only diamond wire.<br />The equipment has already been used in several quarries with excellent results.<br />The cutting speed depends of the diamond wire and material to cut. The speed is between 1.2-2.5 m2/hour with ?10mm diamond wire.<br />Technical specifications and set items: <br />-2 pulleys of diameter ?320mm<br />-2 inferior pneumatic sets with diameter ?230mm pulleys<br />-2 superior pneumatic sets<br />-10 aluminum tubes of 2000x60x60mm<br />-2 control panels<br />-1 hoses set<br />-Total weight with pallet: 175kg<br />-Dimensions: <br />oBox1 ( 1.10x0.80x0.65m) <br />oBox2 (2.05x0.30x0.12m)<br />
